Cardiac Monitoring · LifeSignals Patch
Continuous ECG. Nothing to send back.

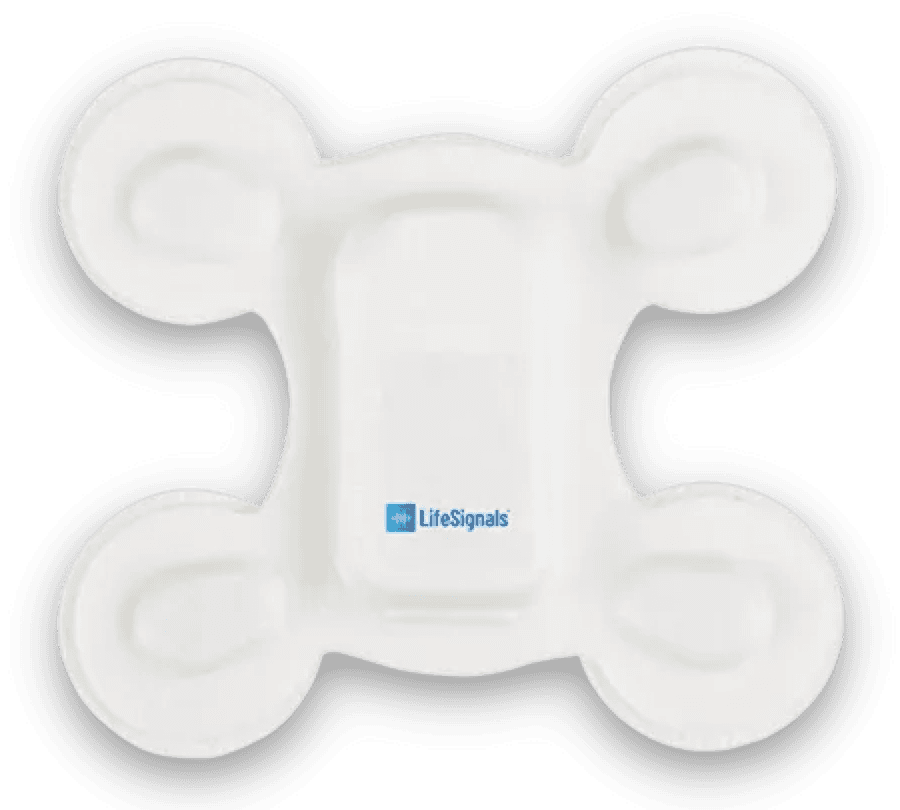

A lightweight, single-use, chest-worn biosensor that records 2-channel ECG, heart rate, heart rate variability, and patient-triggered events continuously. It streams the data in real time while the patient goes about their normal routine.
2-channel ECG at 244.14 samples per second, for the full wear period.
105 × 94 × 12 mm
28 g · IP24 · single use
Scalable monitoring, made simple
The study that doesn't depend on the patient.
Most of what goes wrong with an ambulatory study is logistical, not clinical. Leads come loose. A recorder gets taken off for a shower and doesn't go back on. The device is due back before the symptom ever appears.
A single-use patch removes most of those failure points at once: nothing to charge, nothing to reconnect, nothing to hand back. It goes on in the office in a couple of minutes and comes off at the end of the study — with a continuous record of everything in between.
System parameters
What the patch captures.
- 2-channel ECG
- Two simultaneous channels at 244.14 samples per second, 16-bit.
- Beat and rhythm analysis
- Beats classified and rhythms detected in the cloud, not on the device.
- Heart rate
- Continuous rate across a 30–250 bpm range.
- Heart rate variability
- Reported alongside rate for the full wear period.
- Event recorder
- Patient-activated marker for symptomatic episodes, logged against the strip.
- Up to 30-day studies
- Each patch lasts up to 7 days. Longer studies continue seamlessly with a quick patch change at home — no office visit, no gap in the record.
- Water resistant
- IP24, so showering doesn't interrupt the study.
- Completely untethered
- No leads, no belt clip, no box in a pocket.
- Single use
- Applied once, disposed after the study. Nothing to clean or return.
The efficiency case
26–27 active days a month, per device.
Because the patch is disposable and supplied on a licence, there is no ship-back-and-restock loop between patients — about 50% more monitoring than patches that have to be mailed back, which typically manage 15–16 days.
For the practice
Monitoring you can run at volume.
- Clinical-grade accuracy
- Two channels sampled continuously for the full wear period, with beat and rhythm analysis applied to every one of them.
- Simplified workflow
- Fast skin prep, intuitive setup, and minimal training — a medical assistant can apply it without pulling clinical staff off the floor.
- Monitoring from home
- Patients wear the study through their normal week, which keeps compliance up and unnecessary visits down.
- Data while it still matters
- ECG is transmitted as it is recorded, so significant events reach you during the study rather than in a report weeks later.
For the patient
Comfortable enough to keep wearing.
- Comfortable enough to forget
- 28 grams, chest-worn, no wires. Patients exercise, sleep, and shower through the study window.
- Symptoms logged in the moment
- The event button marks the strip the second something is felt, so the rhythm at that moment is easy to find.
- Gentle on the skin
- Very few instances of allergic reaction with our patches, so patients stay comfortable for the full study.
- Nothing to hand back
- The patch is applied once and disposed of at the end. No return shipping, no charging, no equipment to look after.
See the patch in your workflow.
A short call — no obligation. We'll walk through application, turnaround, and what your staff actually has to do.
